Electron Microscope Analyzers

QUANTAX EDS for TEM

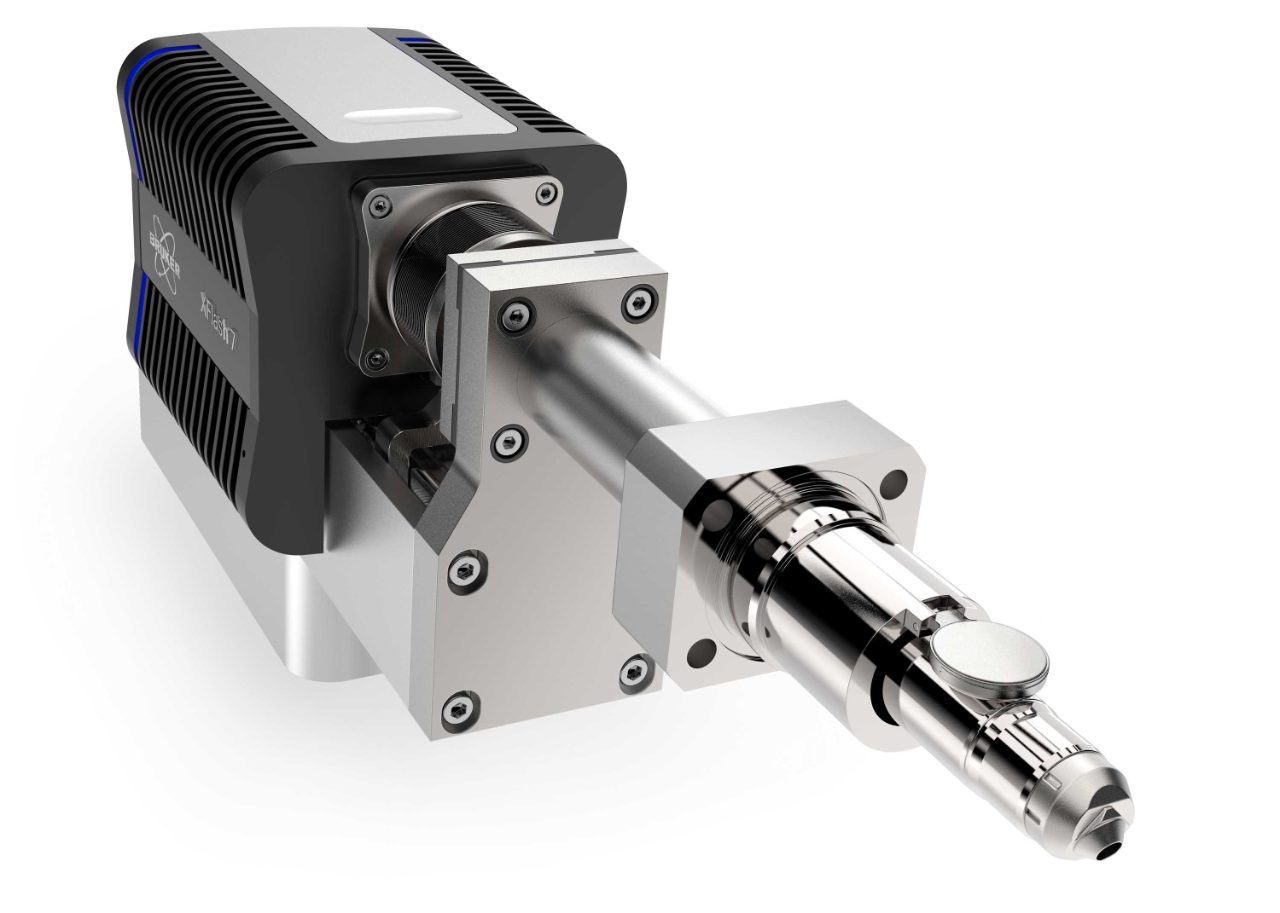

XFlash®7T - Seeing Nano in Color: STEM EDS in TEM and SEM

Single Atoms and Nanostructures

Get the Best Possible Results for each Specific Microscope

Punti salienti

80
keV
Unprecedented upper energy limit
Unequivocally identify and quantify all present elements
3
TEM-quantification models
Succeed in TEM, STEM and T-SEM with easy-to-use powerful quantification based on theoretical and experimental Cliff-Lorimer factors, as well as Zeta-factor interpolation
1
Å
Stable resolution
Map periodic structures (atom, layers) with high stability and using enhanced drift correction features

Element Analysis in Transmission Electron Microscopy on the Nanometer Scale

康泰克t us Download flyer

Flexible and easy-to-use analysissoftware package ESPRITwith anopen user interface: you see what you do.

Off-line analysis optionwith individual or LAN access for student or laboratory networks.

Sophisticated most seasonedquantitative energy dispersive X-ray spectroscopy (EDS)for complete data mining includes:

  • Options for quantification steps:default suggestions for easy use, indvidual setup, detailed modification and saving/reloading of recipes
  • 3 different quantification approaches arecovering all possible scenariosbased on theoretical and experimental Cliff-Lorimer factors as well as Zeta-factors and the interpolation of missing Zeta-factors
  • TEM-specific high energy element lines above 40 keVavailable for quantification ensuring unambiguous results
  • Choice of3 vital background models: a physical one for bulk and a physical one for thin lamellae as well as a mathematical model
  • Absorption correctionincluded in the Cliff-Lorimer quantification already

Benefici

High-resolution Element Distribution Analysis of Electron Transparent Samples in TEM, STEM and SEM (T-SEM)

  • 在EDS确保configu长期经验ration ofthe best solution for your specific microscope (STEM, TEM or SEM)thanks to slim-line detector design and geometrical optimization for each microscope pole piece and EDS flange type
  • Maximum collection and take-off angle allowfast and highly sensitive data acquisition
  • Fast-movingstable detector stage
  • A special drift correction routine for periodic features ensuressuccessful EDS on the nanoscale
  • Time resolved data acquisition for in-situ experimentssuitable for saving a stream of changing data, f.e. at elevated temperatures
  • Automation of data acquisition and analysis processes using the scripting and API options for generation ofspecific analysis jobsandbatch processing
  • Clean data needing no or minimal post-acquisition correctionsdue to avoiding mechanical and electromagnetic interference completely and avoiding or keeping to a minimum specimen tilt, absorption, shadowing and system peaks
  • Most seasoned quantification for EDS datafrom electron transparent specimens on the market provides thorough data mining with unambiguous results
  • Highest quality assistance and trainingdue to long standing experience in TEM for using your system to its full power

Applicazioni

Ultimative Results with the New XFlash®7 EDS Detectors for TEM

© Image and sample courtesy of Michael Malaki, Shamail Ahmed; Material Science center, Faculty of physics, Philipps University Marburg

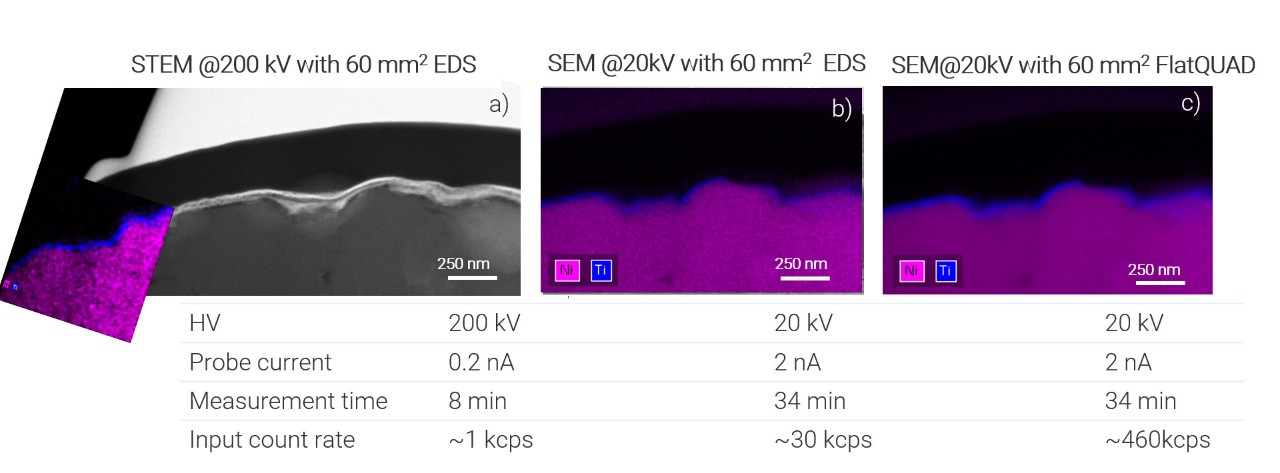

EDS Analyses of Coated Li-ion Battery Cathode Particle

The capacitance retention of NCM cathode material of batteries (SSB and LIB) can be improved by coating structures. To control the performance of these nanometer-thick coatings, their elemental distribution must be known. We present a SEM-based solution of EDS analysis achieving nanometer resolution on micrometer-sized cathode particles with irregular surfaces and compare it to TEM EDS.

Battery Analysis with TEM EDS

Fields of Application of Elemental Analysis on TEM

半导体s

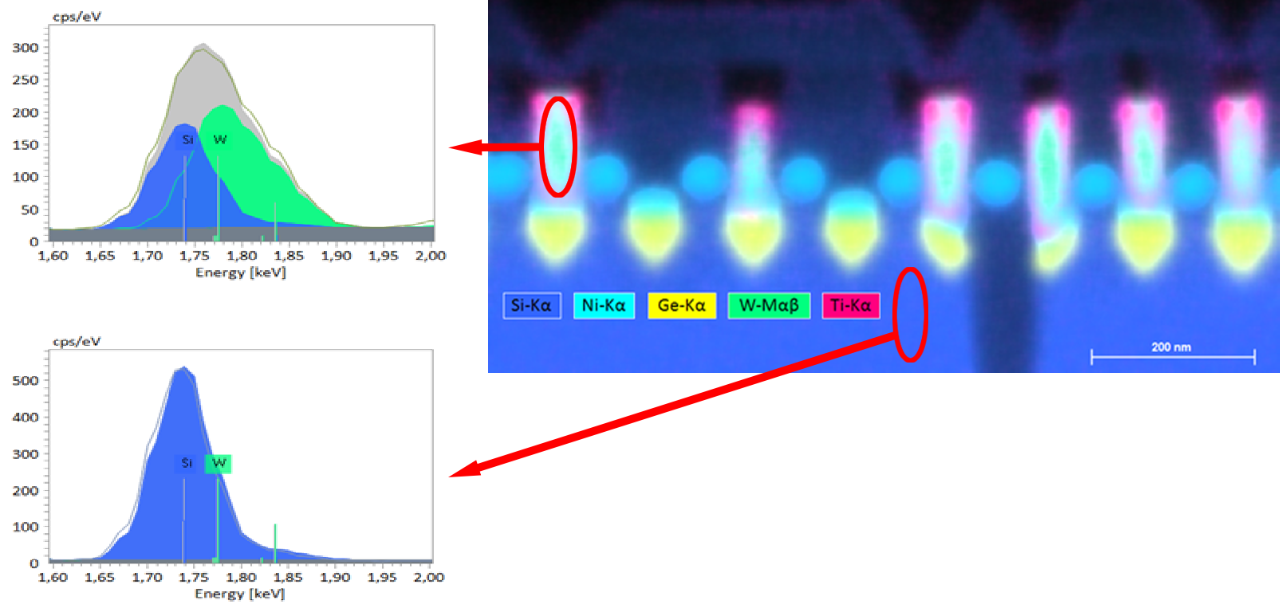

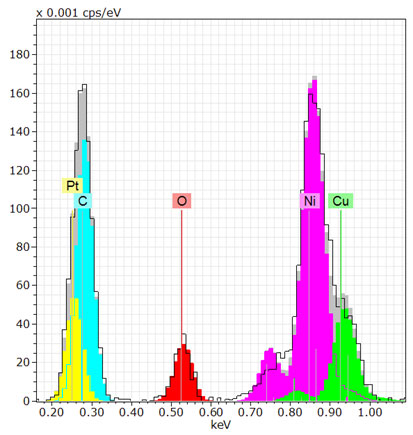

Deconvolution results at low X-ray energy of a spectrum obtained from a NiSi(Pt)

Quantification of the Pt Concentration in a NiSi(Pt)-NiSi2 Semiconductor Structure

This application example shows EDS data from the epitaxial growth of a Pt alloyed NiSi thin film and the quantification of a few at% of Pt alloyed in NiSi. NiSi is used for nm-sized metallization structures in semiconductor devices like MOSFETs.
Leggi di più

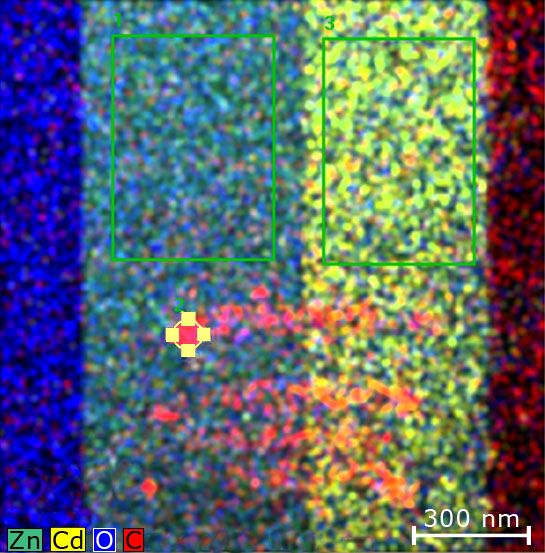

Combined element maps of a layered system

Chemical Phase Analysis of a Layered Structure

It can be advantageous to check hyperspectral images for the existence of chemical phases without applying prior knowledge. Bruker’s ESPRIT AutoPhase automatically finds specimen regions of similar composition by analyzing a HyperMap based on Principle Component Analysis of the spectra. The sensitivity of this procedure can be adjusted. The approach is demonstrated using a multi-layer structure in cross-section as an example.
Leggi di più

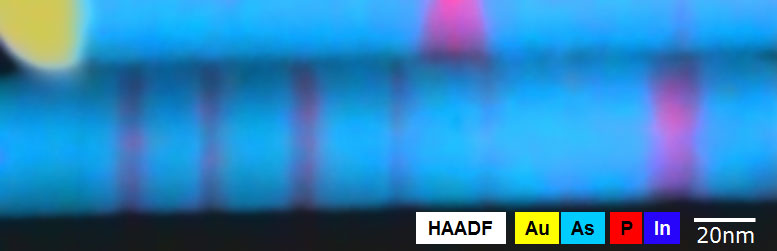

Mixed element map of nanowires

Chemical Characterization of Nanowires

Nanostructures, such as nanowires and nanorods and functionalized nanovehicles are of growing interest for various applications in nanotechnology, be that nano-electronics or drug delivery in the human body.
Leggi di più
Single silicon atom in graphene

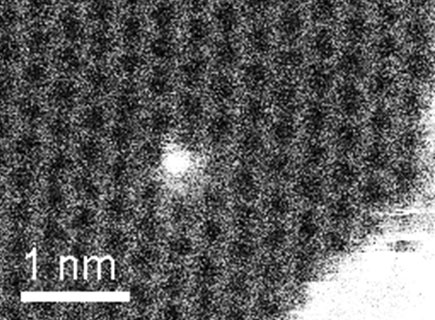

Identifiying a Single Atom on Graphene

Not only is it the highest art of EDS to obtain spectra of a single atom, but it can also provide valuable new information on the excitation properties of specific elements.
Leggi di più
High angle annular darkfield image of an interconnect structure

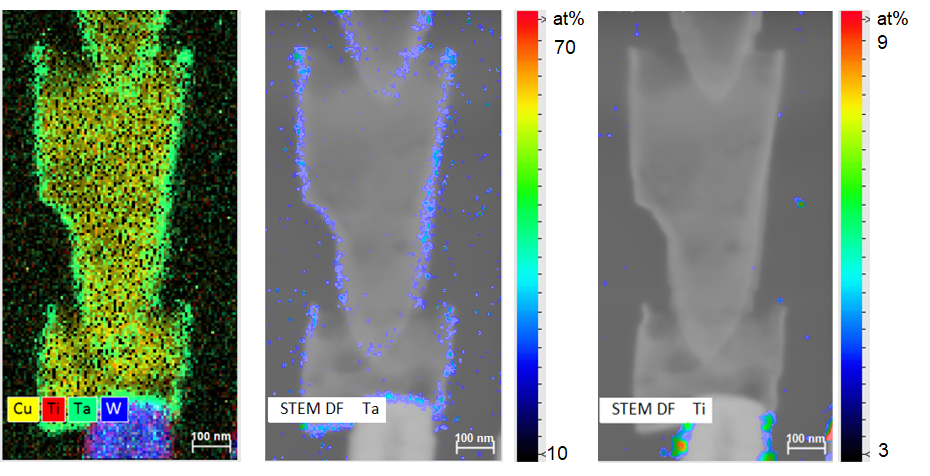

Chemical Composition of Semiconductor Interconnects

Standard energy dispersive X-ray spectroscopy (EDS or EDX) using detector areas of 30mm2 on conventional scanning transmission electron microscopes (STEM) can deliver element mappings with nm resolution within a few minutes. The condition is, that the detector head is small enough (in slim-line design) to get as close to the specimen for (high solid angle) and as high above the specimen (for high take-off angle) as possible. The latter helps to avoid shadowing and absorption effects.
Leggi di più
RAM microchip elemental distribution map

High Resolution Mapping of a Semiconductor RAM Microchip Using STEM-EDS in SEM (T-SEM)

Element distribution mapping of semiconductor nanostructures with X-ray based methods is not always straight forward. The need of nanoscale spatial resolution and X-ray peak overlaps are common challenges when investigating semiconductor materials. Sometimes it can be beneficial to use the SEM instead of expensive TEM tools and time for characterization.
Leggi di più
Nanomaterials
Bright field image and single element maps of a yeast cell

Mapping a Magnetic Nanostructure

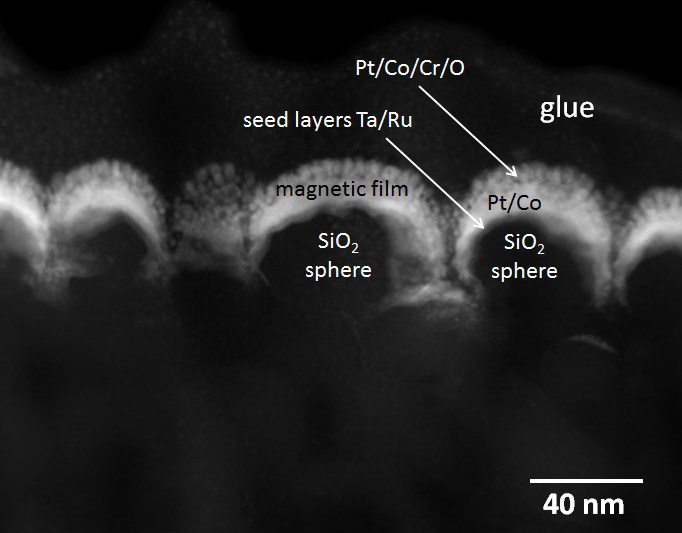

The specimen consists of a SiO2 sphere coated with nm-thin layers of tantalum (Ta), ruthenium (Ru) and topmost a mixture of cobalt (Co), platinum (Pt), chromium (Cr) and oxygen (O).
Leggi di più

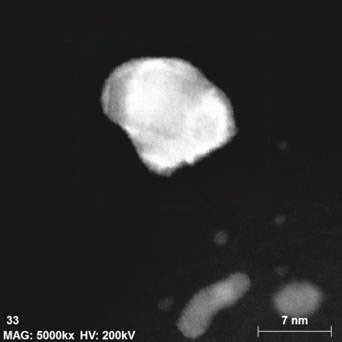

HAADF image of Pd-Pt core shell particles

Qualitative and Quantitative Mapping of a Pd-Pt Core Shell Particle

核壳粒子发挥越来越重要t role in nanotechnology, particularily in catalysis. This application example presents element maps of a Pd-Pt core shell nano-particle.
Leggi di più

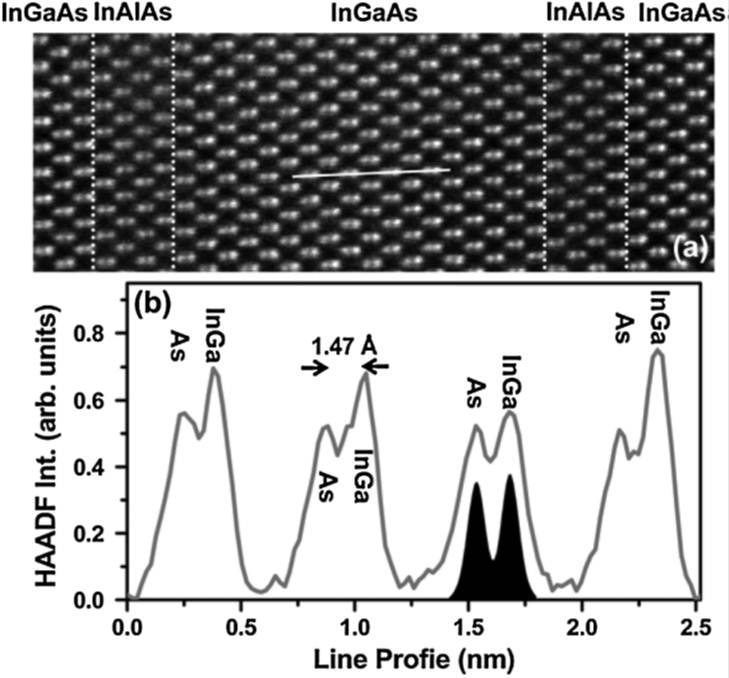

HAADF image and intensity line scan of a InGaAS semiconductor structure

Atom Column EDS Analysis

Properties of a semiconductor are determined by its structure on the atomic level, e.g. by point defects. Using EDS mapping at highest possible resolution it is possible to locate and characterize such defects.
Read more
Bio/Soft Materials

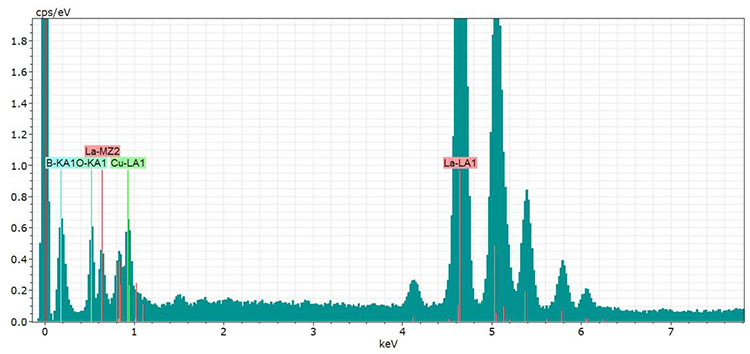

Spectrum of the LaB6 standard used for Cliff-Lorimer factor calibration

Quantitative Analysis Using LaB6 as an Example

Lanthanum hexaboride (LaB6) is a very illustrative example for quantitative EDS analysis in S/TEM, since it contains two extremes, a very light element (B) and a heavy element (La).
Leggi di più

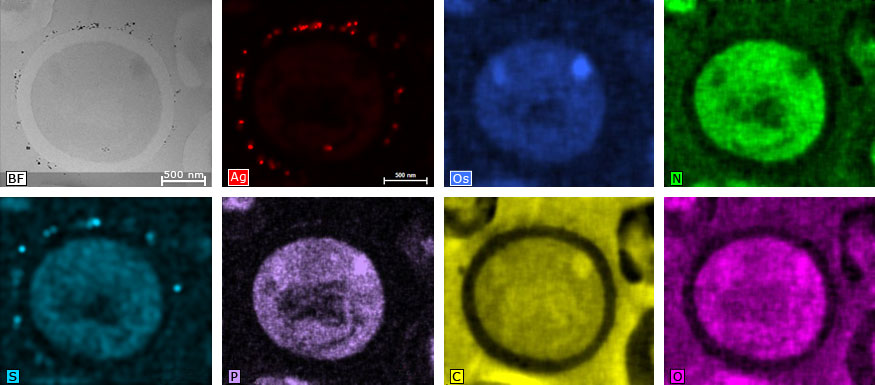

Bright field image and single element maps of a yeast cell

EDS for Life Science

EDS in S/TEM is particularly useful if many elements in a material have to be determined at once. This is the case for quite a few life science applications.
Leggi di più
Malaria parasite in human blood cell

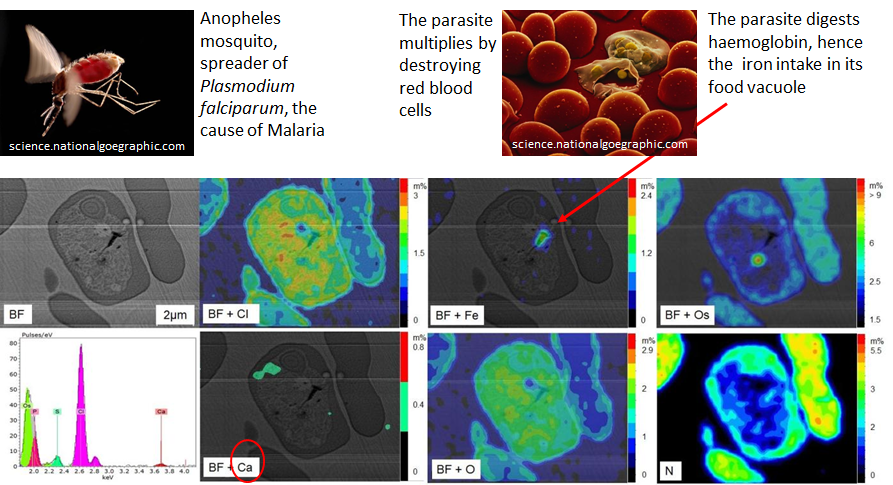

Chemistry of a Malaria Parasite in Human Blood and Immunolabels in a Yeast Cell

Energy dispersive X-ray spectroscopy (EDX or EDS or EDXS) in transmission electron microscopy (STEM) can contribute valuable data in life science, for example for cell and tissue imaging. Silicon drift detectors, used for EDS, have become so sensitive in the lower energy region, that the detection of small amounts of light elements relevant for life science, such as calcium, oxygen, nitrogen and sulfur, is routinely possible now.
Leggi di più
In situ Analysis
In-situ element map

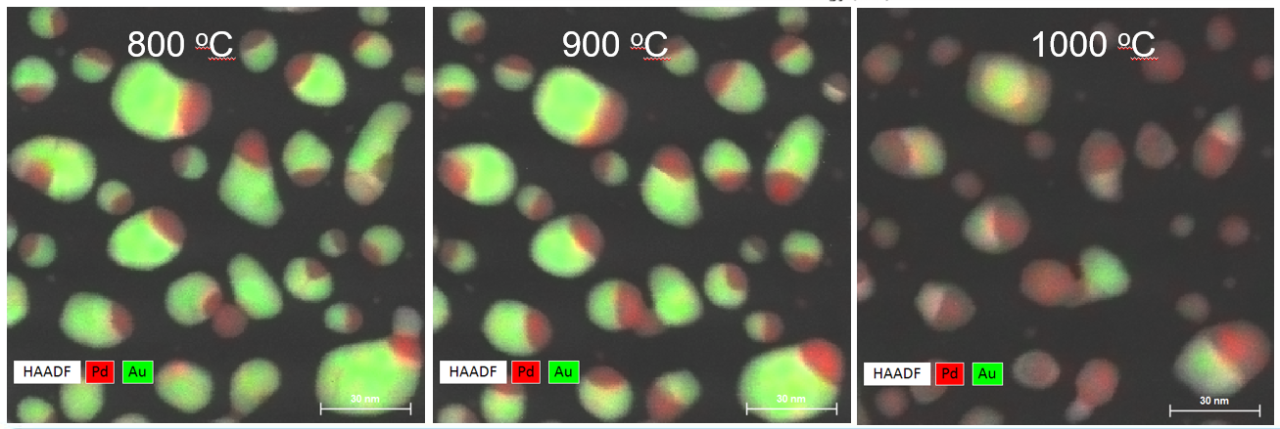

In-situ Element Mapping at Elevated Temperatures

The use of heating holders, or any other in-situ reaction cells, which are suitable for electron microscopy and EDS, allows to monitor the effect of materials treatment in-situ or in-operando in the electron microscope. This means that information on changes in structure and element composition is available qualitatively and quantitavely with high spatial resolution.
Leggi di più
Identifying individual sulfur atoms with EDS on TEM

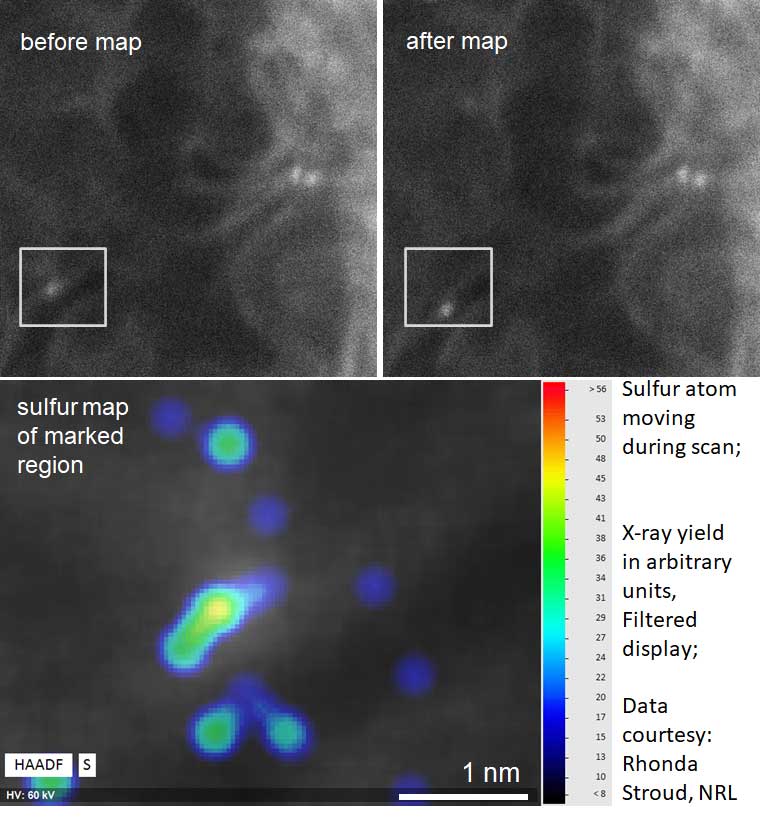

Individual Heteroatom Identification with X-ray Spectroscopy

Individual heteroatoms in nanoscale materials often play a pivotal role in materials properties. To obtain maximum control over materials properties, researchers must be able to detect and identify diverse heteroatoms in samples with varying thickness and composition.
Leggi di più

Webinar

Webinars on EDS Element Mapping in TEM, STEM and SEM (T-SEM)

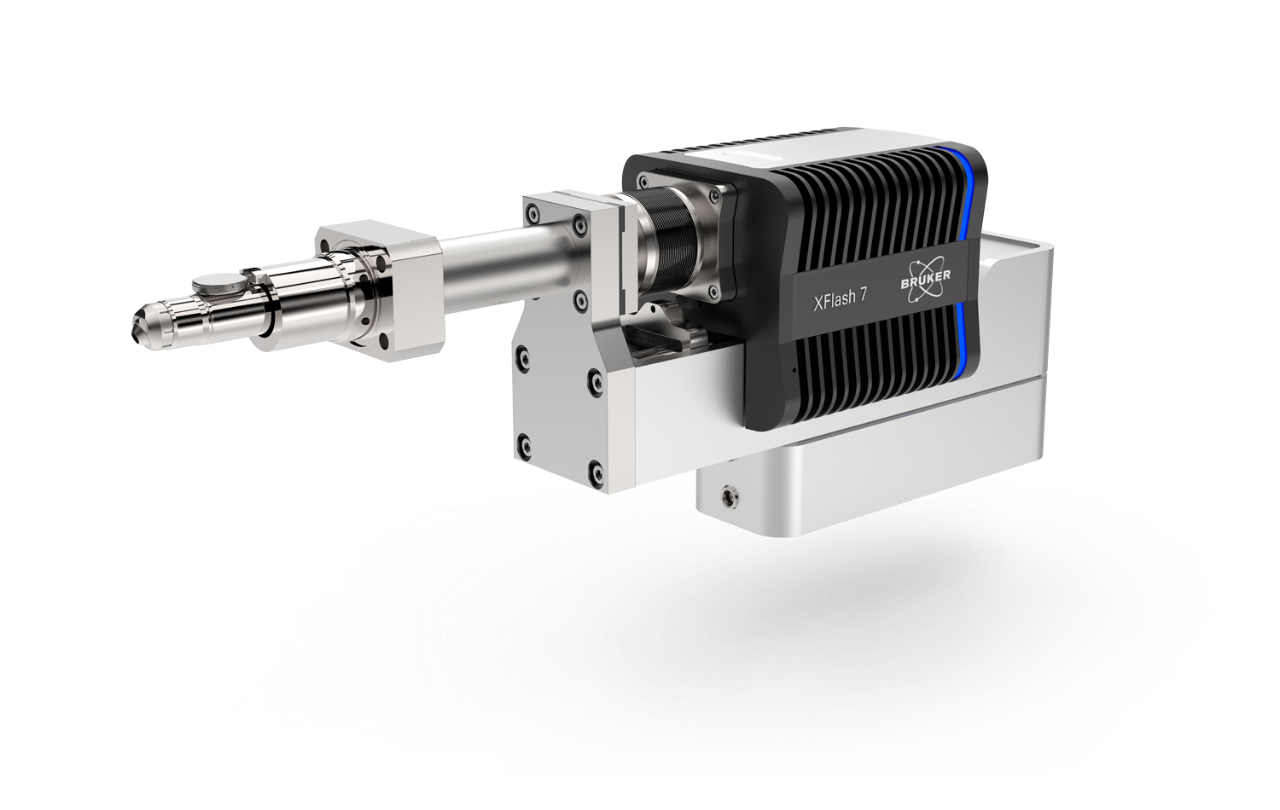

XFlash 7 EDS detector series element analysis EDS
ON-DEMAND SESSION - 35 MINUTES

Introducing the XFlash®7 EDS Detector

In this webinar we present the benefits of this new detector series and discuss specifics of microscope detector geometries. We also show examples of data acquisition and analysis across different fields of application.
Element distribution in FIB lamella by SEM EDS
ON-DEMAND SESSION - 57 MINUTES

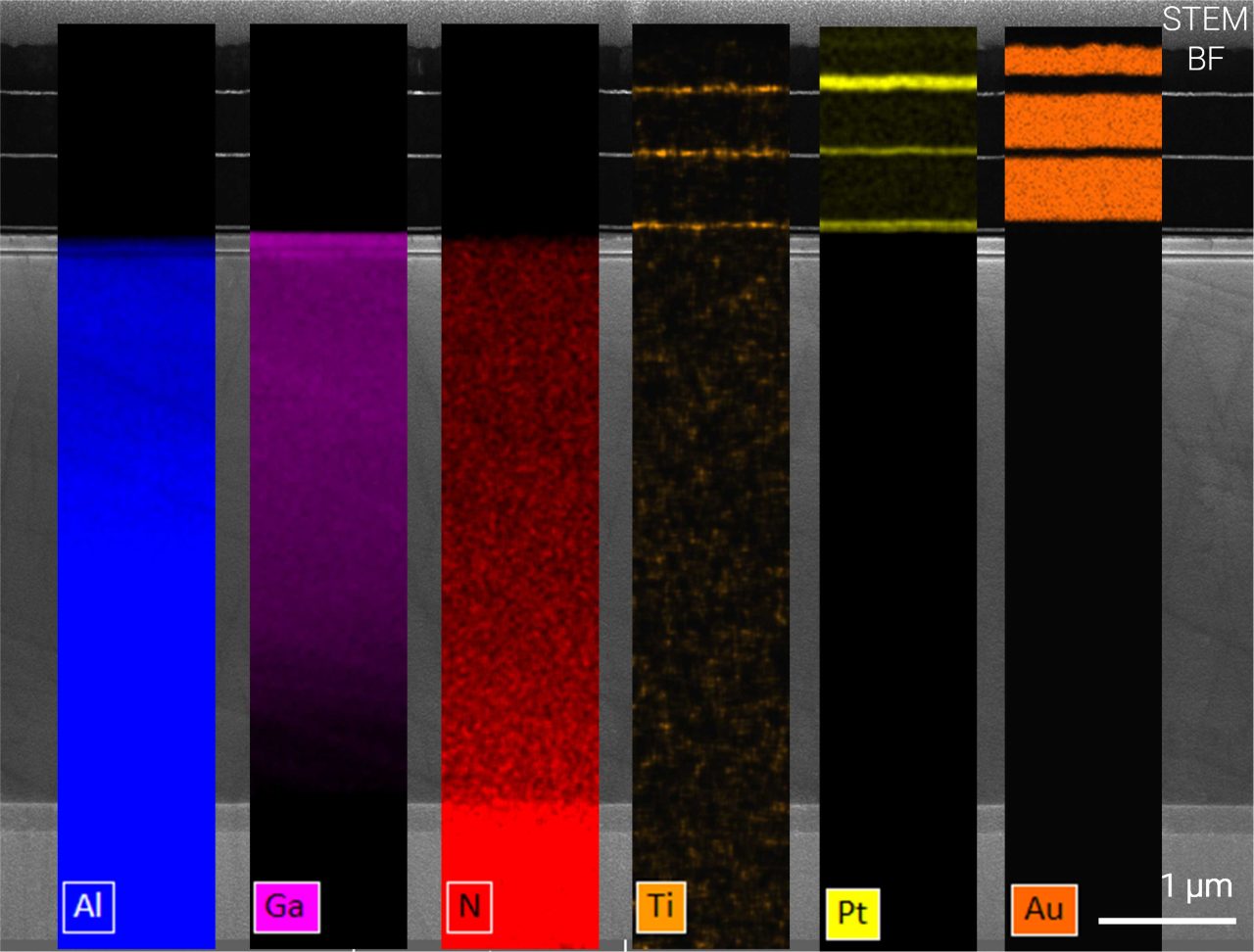

Optimizing Semiconductor-based LED Devices Using EDS of Electron Transparent Specimens in STEM/SEM

The understanding of semiconductor structures on the nanoscale mostly needs high-end analytical scanning transmission electron microscopy including the respective method combination and complex specimen preparation. Here UV-LEDs have been recently tested for skin-tolerant inactivation of SARS-CoV-2 and multi-resistant bacteria.
Significance of STEM-EDXS Analysis in the Characterization of Rechargeable Battery Components
ON-DEMAND SESSION - 49 MINUTES

Significance of STEM-EDXS Analysis in the Characterization of Rechargeable Battery Components

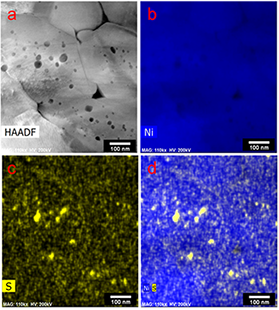

Discussing the use of STEM-EDXS to identify sulfur impurities inside nanopores and at grain boundaries that otherwise go undetected in EELS.
